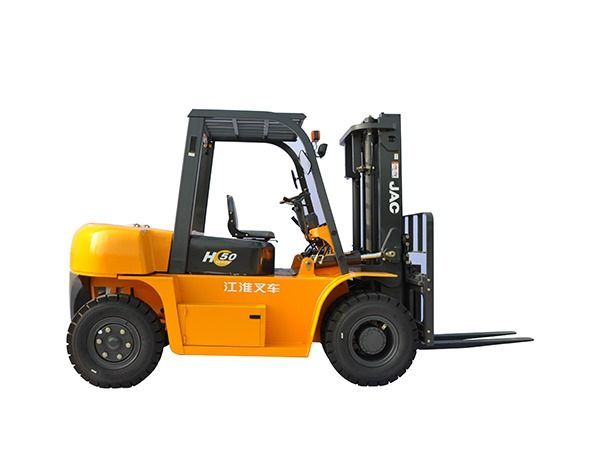

5-10 t J Diesel

Name: 5-10 t J Diesel
SKU: 00004
Availability: InStock

Regresar al catálogo

$0.00

Disponible

Información del producto

Model					CPCD15H	CPCD18H	CPCD20H	CPCD25H	CPCD30H	CPCD35H	CPCD38H	CPCD40H
1	Features	Power type			Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
2		Rated load		kg	1500	1800	2000	2500	3000	3500	3800	4000
3		Load center distance		mm	500	500	500	500	500	500	500	500
4		Lift height		mm	3000	3000	3000	3000	3000	3000	3000	3000
5		Free lift height		mm	155	155	240	240	165	165	110	110
6		Fork size	L×W×T	mm	920×100×40	920×100×40	1070×122×40	1070×122×40	1070×125×45	1070×125×45	1070×150×50	1070×150×50
7		Mast tilt angle	FR/RR	。	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12
8		Minimum turning radius		mm	1955	1985	2170	2230	2550	2570	2835	2835
9		Minimum right angle stacking aisle width		mm	3365	3395	3635	3695	4025	4045	4325	4325
10		Minimum right angle aisle width		mm	2155	2185	2370	2430	2750	2770	3035	3035
11		Minimum ground clearance		mm	110	110	110	110	130	130	138	138
12		Height of overhead guard		mm	2060	2060	2070	2070	2090	2090	2140	2140
13		Overhang(FR)		mm	410	410	465	465	475	475	490	490
14	Performance	Maximum travel speed	Full load	km/h	14.6	14.6	18	18	19	19	19	19
15		Maximum lift speed	Full load	mm/s	510	510	500	500	560	430	445	431
16		Maximum drawbar pull	Full load	KN	14	19	11.7	11.4	20	28	20.8	21.8
17		Gradeability		%	20	20	20	18	15	15	15	15
18	Dimensions	Overall length	Without forks	mm	2235	2270	2505	2580	2765	2800	2950	2950
19		Overall width		mm	1080	1080	1160	1160	1230	1230	1410	1410
20		Fork height at maximum lift(with backrest)		mm	3930	3930	3944	3944	4230	4230	4220	4220
21		Mast height		mm	2010	2010	1995	1995	2075	2120	2125	2125
22	Chassis	Tires	Front wheel		6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR	250-15-16PR	250-15-16PR
23		Tires	Rear wheel		5.00-8-10PR	5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
24		Wheelbase		mm	1400	1400	1600	1600	1760	1760	1900	1900
25		Tread	Front wheel/rear wheel	mm	891/920	891/920	970/970	970/970	1000/970	1000/970	1160/1065	1160/1065
26		Self weight	Without load	Kg	2790	2890	3300	3660	4140	4460	5070	5200
27	Drive	Battery	Voltage/capacity	V/Ah	12/80	12/80	12/80	12/80	12/80	12/80	12/80	12/80
28		Engine	Model		Xinchang 4N23G31	Xinchang 4N23G31	Xinchang 4D27G31	Xinchang 4D27G31	Xinchang 4D27G31	Xinchang 4D27G31	Xinchang 4D30G31	Quanchai 4C4-50V31
29			Rated output	kw/r.p.m	30/2600	30/2600	36.8/2500	36.8/2500	36.8/2500	36.8/2500	36.8/2500	36.8/2500
30			Rated torque	Nm/r.p.m	131/1700-1900	131/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900	156/1700-1900	174/1800-2000	185/1800
31			Bore×stroke	mm	85×100	85×100	90×105	90×105	90×105	90×105	95×105	98×105
32			Number of cylinders		4	4	4	4	4	4	4	4
33			Displacement	L	2.27	2.27	2.67	2.67	2.67	2.67	2.98	3.168
34		Fuel tank capacity		L	49	49	55	55	55	55	66	66
35		Transmissions(FWD/RWD)			1/1 Manual shift	1/1 Manual shift	1/1 Manual shift	1/1 Manual shift	1/1 Manual shift	1/1 Manual shift	1/1 Manual shift	1/1 Manual shift
36		Operating pressure		Mpa	15.5	15.5	18.5	18.5	18.5	18.5	14.5	14.5
37	Supplement	Tire type(FR/RR)			Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
38		Number of wheels(FR/RR)		Pcs	2/2	2/2	2/2	2/2	2/2	2/2	2/2	2/2
39		Lowering speed(full load)		mm/s	370	370	450	450	460	330	480	490
40		Lowering speed(no load)		mm/s	640	640	500	500	430	330	450	450
41		Axle load distribution(full load)(FR/RR)		kg	3640/520	4040/600	4740/660	5470/805	6270/870	7015/945	7890/980	8180/1020
42		Axle load distribution(fno load)(FR/RR)		kg	1170/1490	1140/1750	1415/1340	1475/2305	1640/2500	1660/2800	2040/3030	2090/3110
